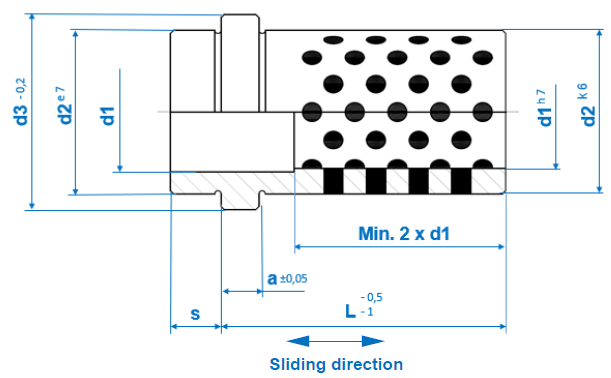

BUSH REF. 312

d1	L	d2	d3	s	a	ITEM CODE

9	17	14	16	5	3	G31209017
10	17	14	16	5	3	G31210017
9	22	14	16	5	3	G31209022
10	22	14	16	5	3	G31210022
9	27	14	16	5	3	G31209027
10	27	14	16	5	3	G31210027
9	36	14	16	5	3	G31209036
10	36	14	16	5	3	G31210036
9	46	14	16	5	3	G31209046
10	46	14	16	5	3	G31210046
9	56	14	16	5	3	G31209056
10	56	14	16	5	3	G31210046
9	66	14	16	5	3	G31209056
10	66	14	16	5	3	G31210056
14	17	20	25	6	6	G31214017
15	17	20	25	6	6	G31215017
14	22	20	25	6	6	G31214022
15	22	20	25	6	6	G31215022
14	27	20	25	6	6	G31214027
15	27	20	25	6	6	G31215027
14	36	20	25	6	6	G31214036
15	36	20	25	6	6	G31215036
14	46	20	25	6	6	G31214046
15	46	20	25	6	6	G31215046
14	56	20	25	6	6	G31214056
15	56	20	25	6	6	G31215056
14	66	20	25	6	6	G31214066
15	66	20	25	6	6	G31215066
14	76	20	25	6	6	G31214076
15	76	20	25	6	6	G31215076
18	17	26	31	8	6	G31218017
20	17	26	31	8	6	G31220017
18	22	26	31	8	6	G31218022
20	22	26	31	8	6	G31220022
18	27	26	31	8	6	G31218027
20	27	26	31	8	6	G31220027
18	36	26	31	8	6	G31218036
20	36	26	31	8	6	G31220036
18	46	26	31	8	6	G31218046
20	46	26	31	8	6	G31220046
18	56	26	31	8	6	G31218056
20	56	26	31	8	6	G31220056
18	66	26	31	8	6	G31218066
20	66	26	31	8	6	G31220066
18	76	26	31	8	6	G31218076
20	76	26	31	8	6	G31220076
22	22	30	35	8	6	G31218022
24	22	30	35	8	6	G31220022
22	27	30	35	8	6	G31218027
24	27	30	35	8	6	G31220027
22	36	30	35	8	6	G31218036
24	36	30	35	8	6	G31220036
22	46	30	35	8	6	G31218046
24	46	30	35	8	6	G31220046
22	56	30	35	8	6	G31218056
24	56	30	35	8	6	G31220056
22	66	30	35	8	6	G31218066
24	66	30	35	8	6	G31220066
22	76	30	35	8	6	G31218076
24	76	30	35	8	6	G31220076
22	86	30	35	8	6	G31218086
24	86	30	35	8	6	G31220086
22	96	30	35	8	6	G31218096
24	96	30	35	8	6	G31220096
22	116	30	35	8	6	G31218116
24	116	30	35	8	6	G31220116
30	27	42	47	8	6	G31230027
32	27	42	47	8	6	G31232027
30	36	42	47	8	6	G31230036
32	36	42	47	8	6	G31232036
30	46	42	47	8	6	G31230046
32	46	42	47	8	6	G31232046
30	56	42	47	8	6	G31230056
32	56	42	47	8	6	G31232056
30	66	42	47	8	6	G31230066
32	66	42	47	8	6	G31232066
30	76	42	47	8	6	G31230076
32	76	42	47	8	6	G31232076
30	86	42	47	8	6	G31230086
32	86	42	47	8	6	G31232086
30	96	42	47	8	6	G31230096
32	96	42	47	8	6	G31232096
30	116	42	47	8	6	G31230116
32	116	42	47	8	6	G31232116
30	136	42	47	8	6	G31230136
32	136	42	47	8	6	G31232136
40	46	54	60	10	10	G31240046
42	46	54	60	10	10	G31242046
40	56	54	60	10	10	G31240056
42	56	54	60	10	10	G31242056
40	66	54	60	10	10	G31240066
42	66	54	60	10	10	G31242066
40	76	54	60	10	10	G31240076
42	76	54	60	10	10	G31242076
40	86	54	60	10	10	G31240086
42	86	54	60	10	10	G31242086
40	96	54	60	10	10	G31240096
42	96	54	60	10	10	G31242096
40	116	54	60	10	10	G31240116
42	116	54	60	10	10	G31242116
40	136	54	60	10	10	G31240136
42	136	54	60	10	10	G31242136
40	156	54	60	10	10	G31240156
42	156	54	60	10	10	G31242156
40	196	54	60	10	10	G31240196
42	196	54	60	10	10	G31242196
