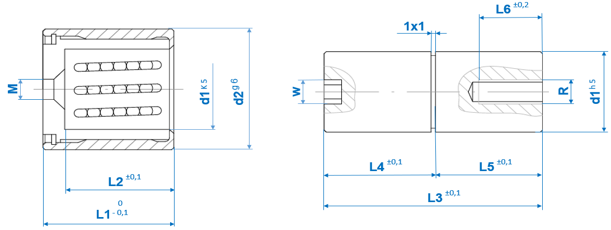

CIRCULAR BALL CENTERER REF. 522
| d1 | d2 | L1 | L2 | M | L3 | L4 | L5 | W | R | L6 | ITEM CODE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 22 | 25 | 20 | M4 | 39 | 19 | 20 | 3 | M5 | 8 | CL522012 |
| 18 | 30 | 30 | 25 | M5 | 49 | 24 | 25 | 4 | M6 | 10 | CL522018 |
| 24 | 38 | 35 | 30 | M6 | 59 | 29 | 30 | 5 | M8 | 12 | CL522024 |
| 30 | 46 | 40 | 35 | M8 | 69 | 34 | 35 | 6 | M10 | 14 | CL522030 |
Mat BALL BUSH : 1.7131 ≈ 60-62 HRc. / 3.2315 / High precision balls (AISI 52100)
PILLAR BALL : 1.7131 ≈ 62-64 HRc
